Overview

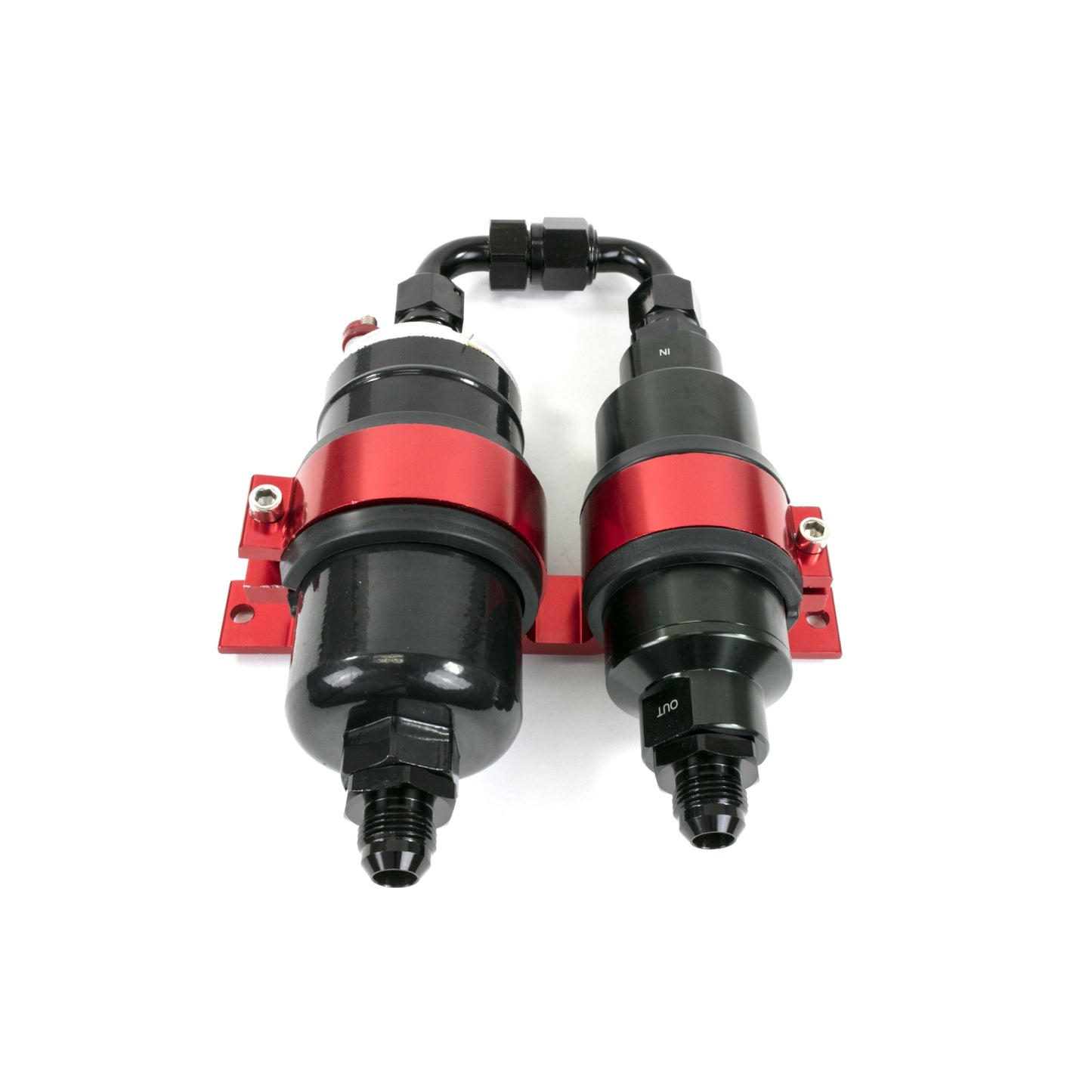

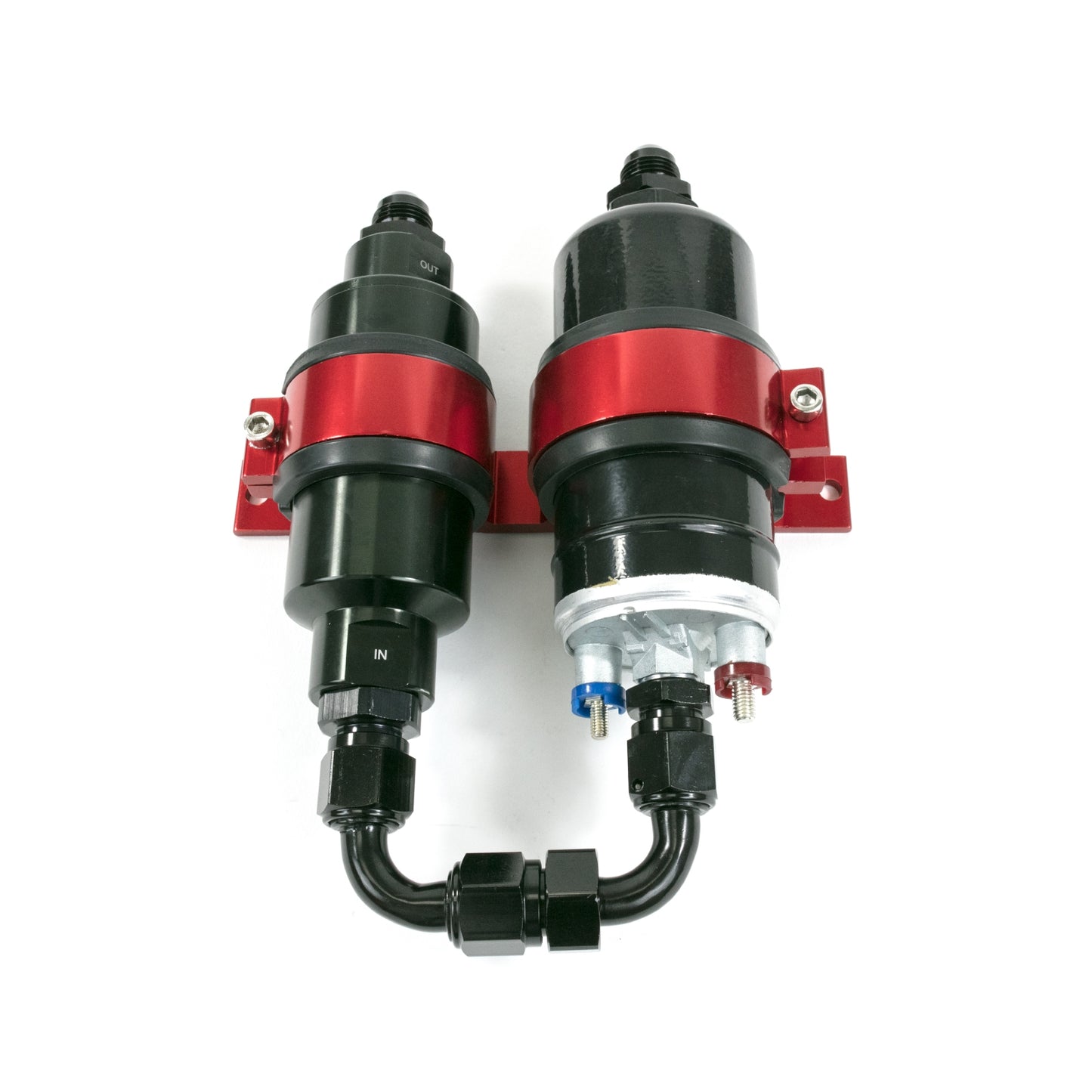

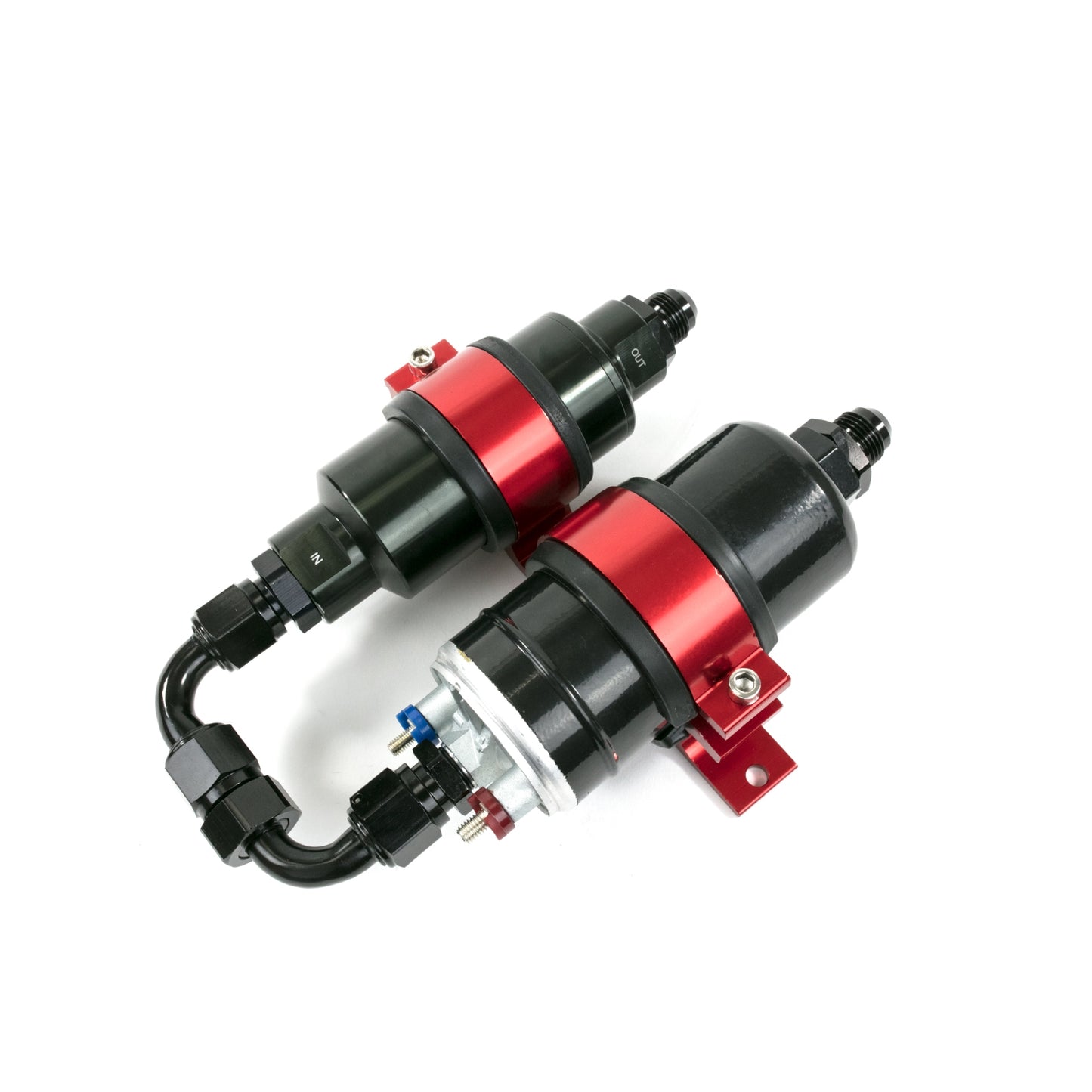

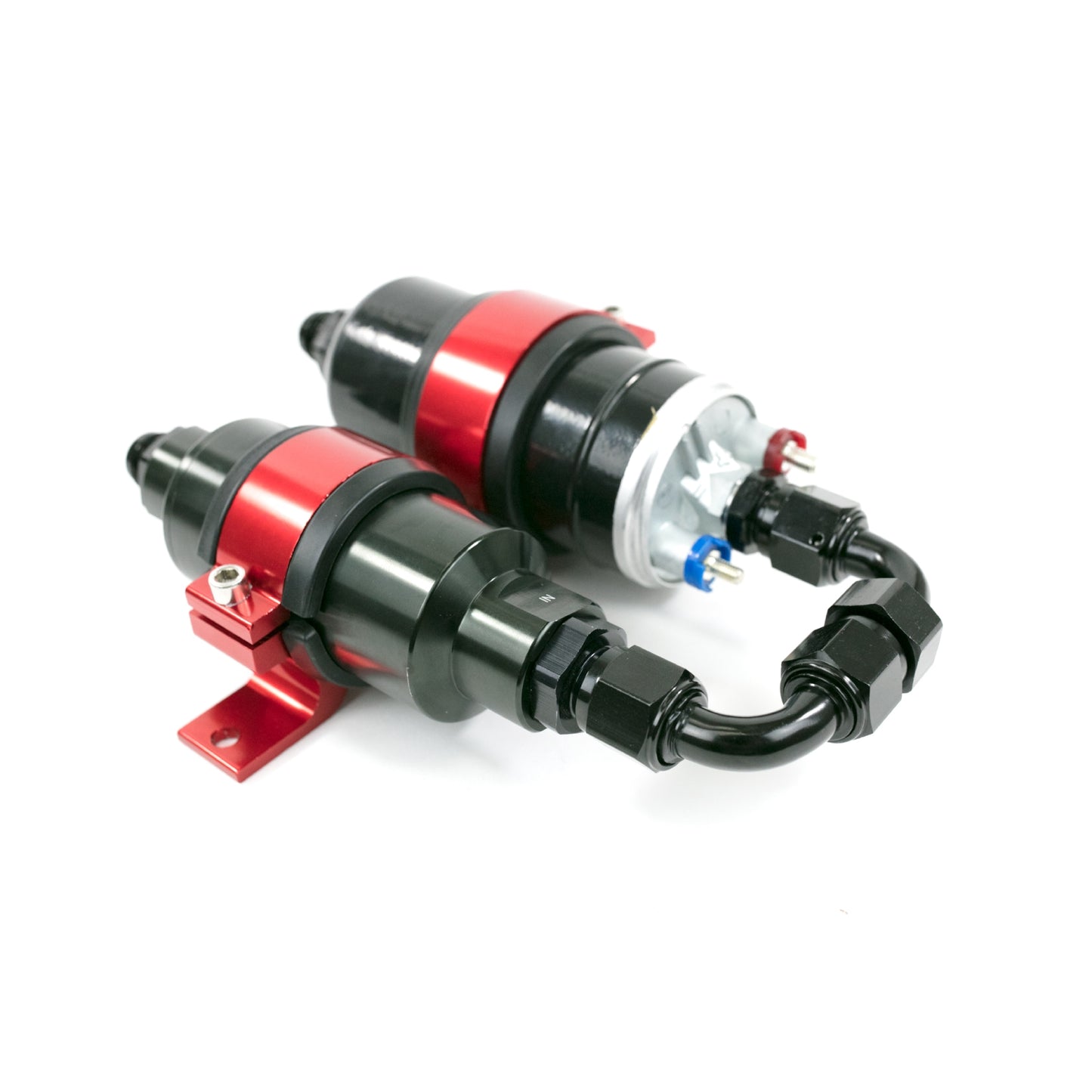

Take care of your fuel delivery needs with this two-in-one electric fuel pump and filter kit. This kit features a high-flow pump, efficient filter, and an easy to mount bracket.
Fuel Pump
TSP's high-flow, electric fuel pump is a great fuel delivery solution for your EFI power plant. Housed in the "044" style, it comes with all fittings and post hardware for simple installation. Compatible with EFI gasoline applications, it flows at 320 liters, or 85 gallons, per hour.
| Pump Free Flow | 320 lph (85 gph) |
| Maximum Pressure | 90 PSI |
| Housing Material | Aluminum |
| Inlet Attachment | Female |
| Inlet Size | -10 AN |
| Inlet Quantity | One |
| Outlet Attachment | Female |
| Outlet Size | -6 AN |
| Outlet Quantity | One |
Fuel Filter
Precision-machined from 6061-T6 billet aluminum, TSP's inline fuel filters offer simple, reliable filtration and versatility. They are designed for maximum flow, with almost no pressure drop, and can be used in fuel injected or carbureted engines with low or high horsepower.
| FILTER TYPE | Inline |
| INLET SIZE | -10 AN O-Ring |
| INLET ATTACHMENT | Female |
| OUTLET SIZE | -10 AN O-Ring |
| OUTLET ATTACHMENT | Female |
| SMALLEST PARTICLE FILTERED | 10 Microns |
| MAXIMUM FUEL PRESSURE | 250 PSI |
| ELEMENT MATERIAL | Paper |
| HOUSING MATERIAL | Aluminum |
| HOUSING LENGTH | 5.5" (140mm) |
| HOUSING DIAMETER | 2" (50mm) |
| CLAMPS | Not Included |
| MOUNT | Not Included |
| FITTINGS | Not Included |
Bracket
CNC-machined from lightweight billet aluminum, TSP's fuel pump and filter mounting bracket is a simple tool to help when configuring your fuel system. It utilizes a straight-forward clamp design for easy installation, and it's diameters are designed for the Bosch 044 style fuel pump (TSP JM1040) and inline fuel filter (TSP JM1021, JM1022, JM1023).
| Bracket Style | Clamp |
| Bracket Material | Billet Aluminum |
| Insert Material | Silicone |
| Pump Diameter | 60mm with Insert |
| Filter Diameter | 50mm with Insert |
| Hardware | Not Included |
Fitment
THIS PRODUCT IS UNIVERSAL
- Pump requires the use of 100 micron pre-filter
- Filter can be configured as pre-filter or post-filter
