Top Street Performance
Chevy SB/BB V8 Low-Profile Pro Series Pro Billet Distributor with Crab Cap
Couldn't load pickup availability
Overview
TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. This new low-profile distributor features a re-designed housing and crab-style cap. Measuring less than 5" from the mounting surface to the top, installing a blower will be a breeze.
Requires the use of an ignition control system and external ignition coil.

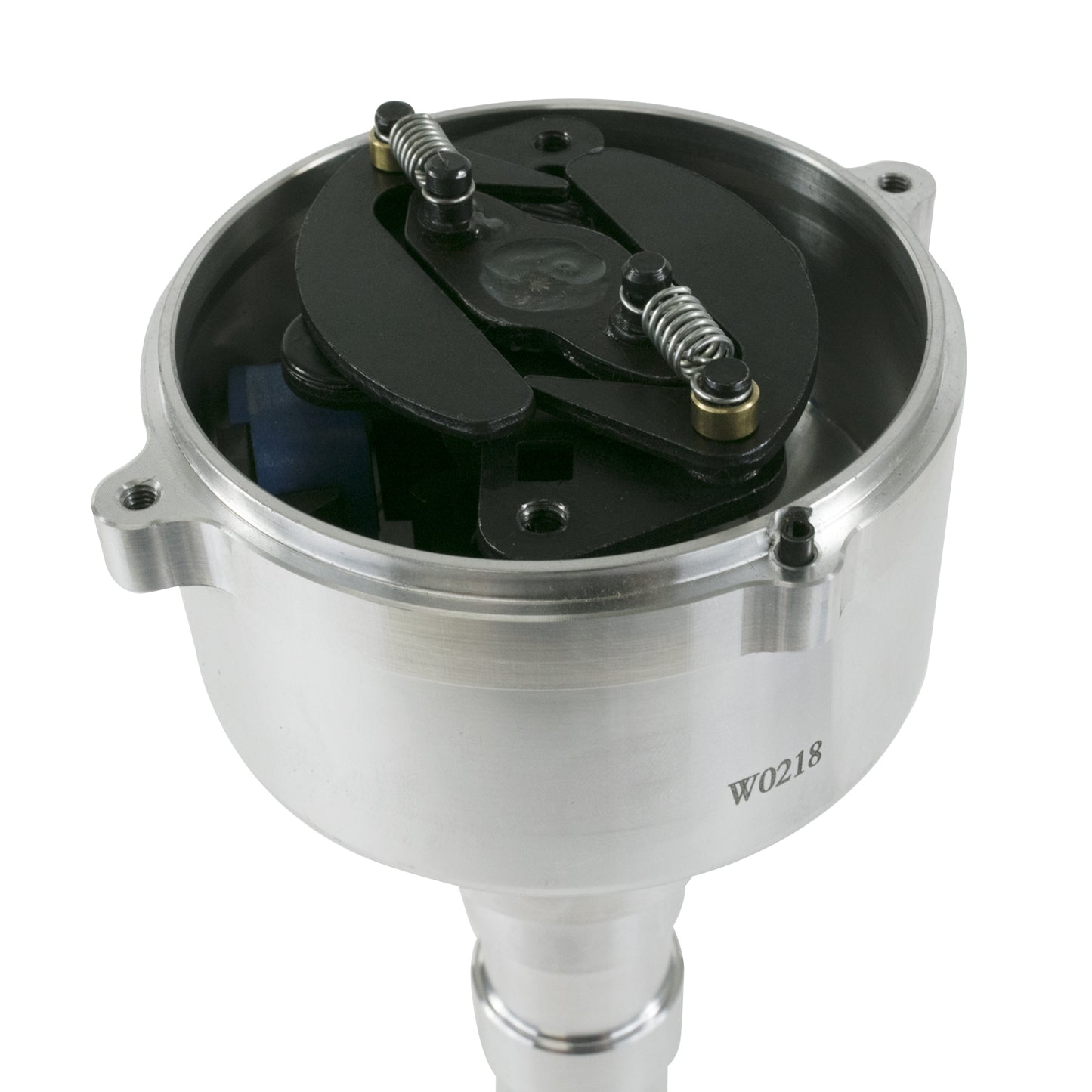

Fully Adjustable Mechanical Advance
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
Specifications
| TRIGGER STYLE | Magnetic |
| ADVANCE TYPE | Mechanical |
| CAP STYLE | Crab with Male Terminals |
| MECHANICAL TACH DRIVE | No |
| SLIP COLLAR | No |
| COIL INCLUDED | No |
| COIL TYPE | External |
| COIL OUTPUT | 35,000+ Volt Recommended |
| GEAR MATERIAL | Steel |
| HOUSING MATERIAL | Machined Aluminum |
| IGNITION BOX REQUIRED | Yes |
| MARINE USE | No |
| CYLINDERS | 8 |
| INCLUDED | 3 Bushings and 4 Springs for Mechanical Advance |
Fitment
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
- 6.5 L / 396 in3
- 6.6 L / 402 in3
- 7.4 L / 454 in3
CHEVROLET SMALL BLOCK V8 GEN. I
- 4.3 L / 262 in3
- 4.3 L / 265 in3
- 4.4 L / 267 in3
- 4.6 L / 283 in3
- 4.9 L / 302 in3
- 5.0 L / 305 in3
- 5.0 L / 307 in3
- 5.4 L / 327 in3
- 5.7 L / 350 in3
- 6.6 L / 400 in3
NOTES
- Will not fit tall deck blocks
- Will not fit if using a governor
Resources
Part Numbers
| Black | JM9601BK |
| Red | JM9601R |
