Holley

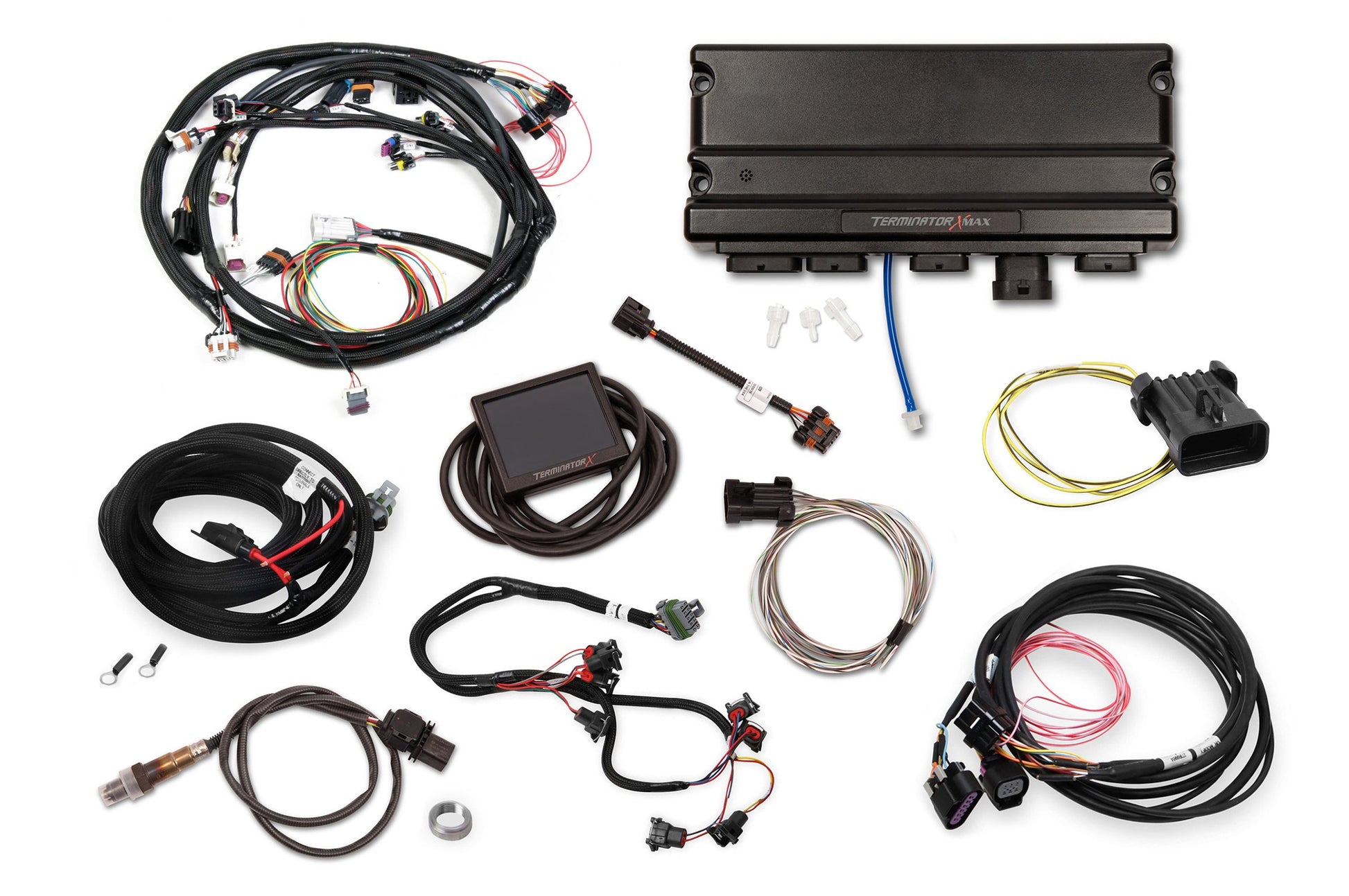

Holley EFI Terminator X Max - Universal MPFI Kit - GM 4L60E/80E Transmission Control 550-959

Regular price $2,976.00 AUD
Regular price Sale price $2,976.00 AUD
Sale Sold out
Take control of your engine with Terminator X! Don't settle for a factory ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common V8 engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won't break the bank!

Features:

  • Plug and play Domestic V8 engine control, such as conventional push rod Chevrolet and Chrysler engines.
  • Includes EV1 Injector Harness
  • GM DBW Throttle Body Control Harness (Terminator X Max Only)
  • GM 4L60/4L80E Transmission Control Harness (Terminator X Max Only)
  • High Impedance Injector Drivers will safely power most Stock injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)
  • Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.
  • Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th – ¼ and 3/16ths) - or for Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector terminated, making the install
  • MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
  • Plug and plug ignition capability with Dual Sync and HyperSpark Distributors, adapter 558-323 required for HyperSpark Distributors.
  • 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
  • Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
  • Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
  • Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
  • On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance
  • The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display.
  • The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
  • Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support!
  • Free EFI Tuning Software for complete control of your Terminator X power plant

      Emissions Disclaimer

      This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.

      The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

      1965 and older U.S. manufactured California Certified vehicles.

      1967 and older U.S. manufactured Federally Certified vehicles.

      1967 and older Foreign manufactured vehicles.

      The following vehicles are considered Racing Use Only Vehicles:

      Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street

      WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

      The following vehicles are considered Emissions Controlled Vehicles:

      1966 and newer U.S. manufactured California Certified vehicles.

      1968 and newer U.S. manufactured Federally Certified vehicles.

      1968 and newer Foreign manufactured vehicles.
