GM LS High Performance Ignition Coils with Relocation Brackets

Regular price $560.00 AUD
Regular price Sale price $560.00 AUD
Sale Sold out
Ignition Coil
Bracket

Overview

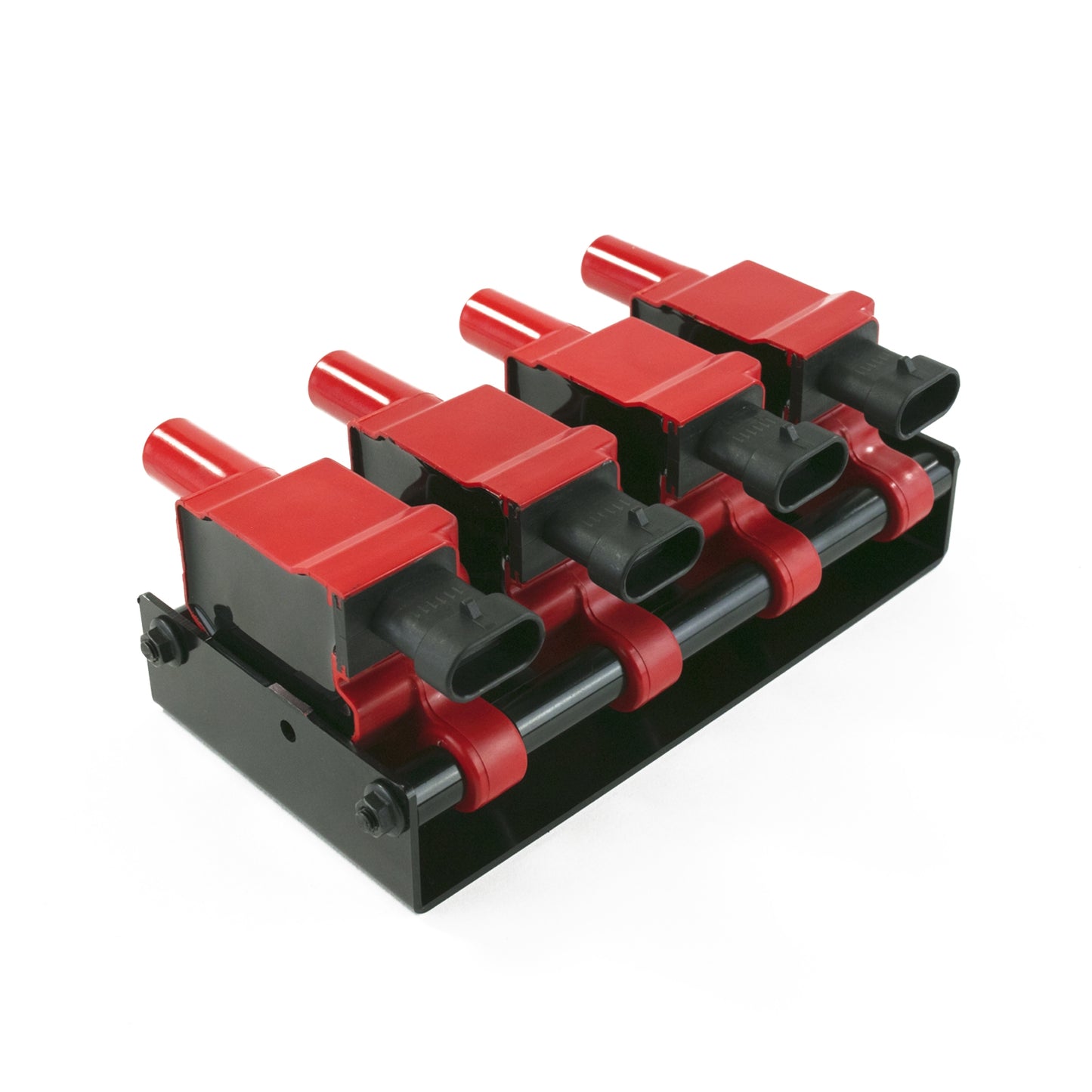

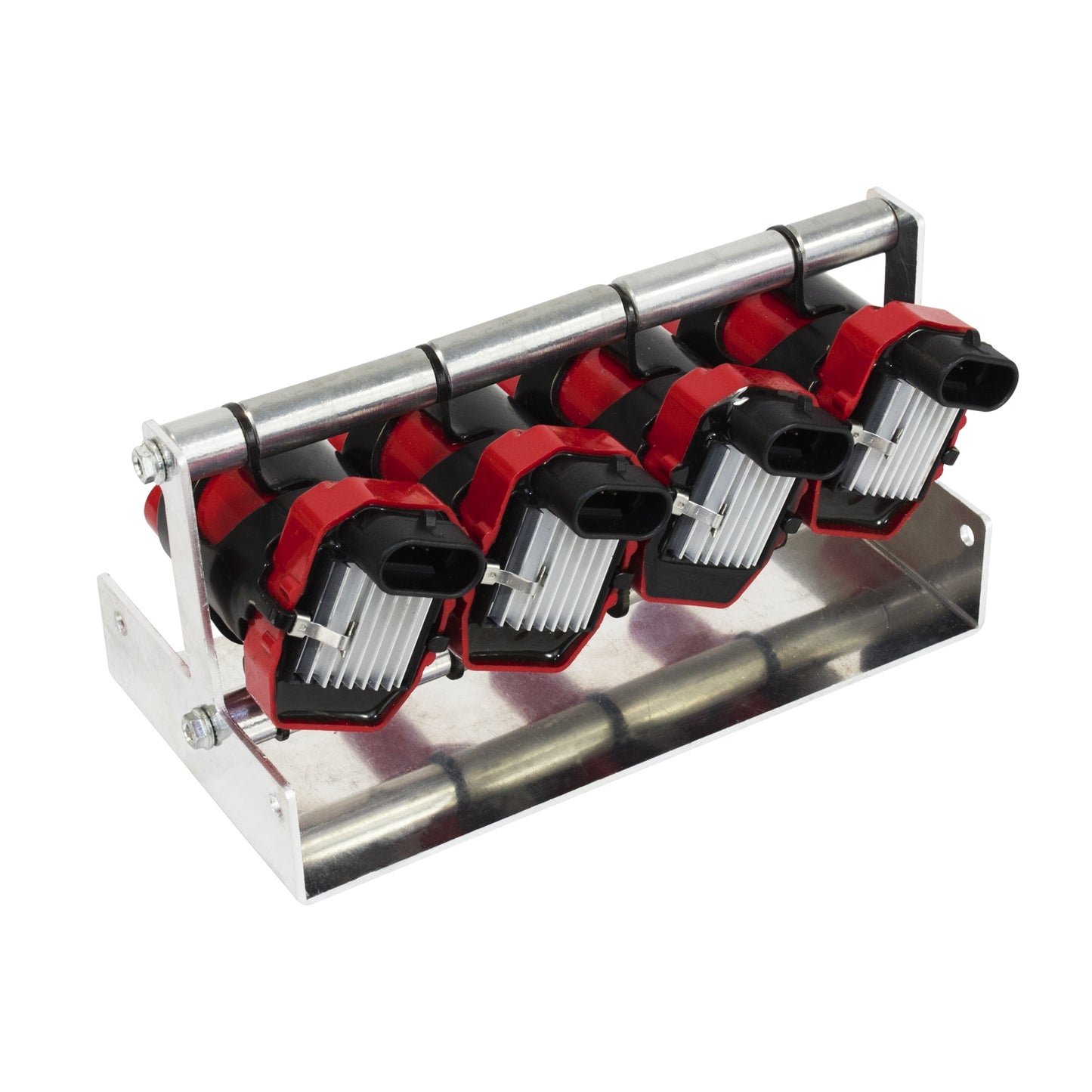

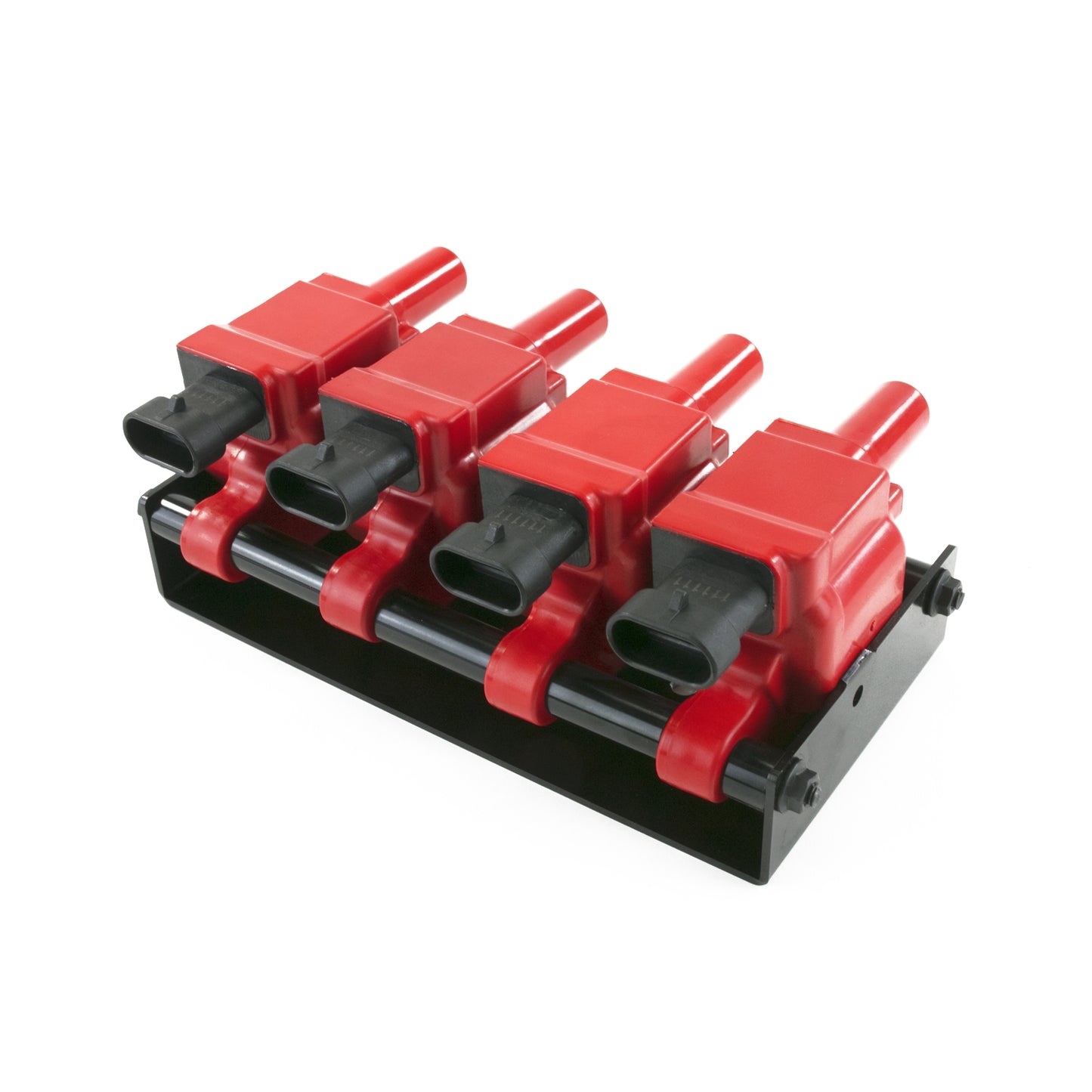

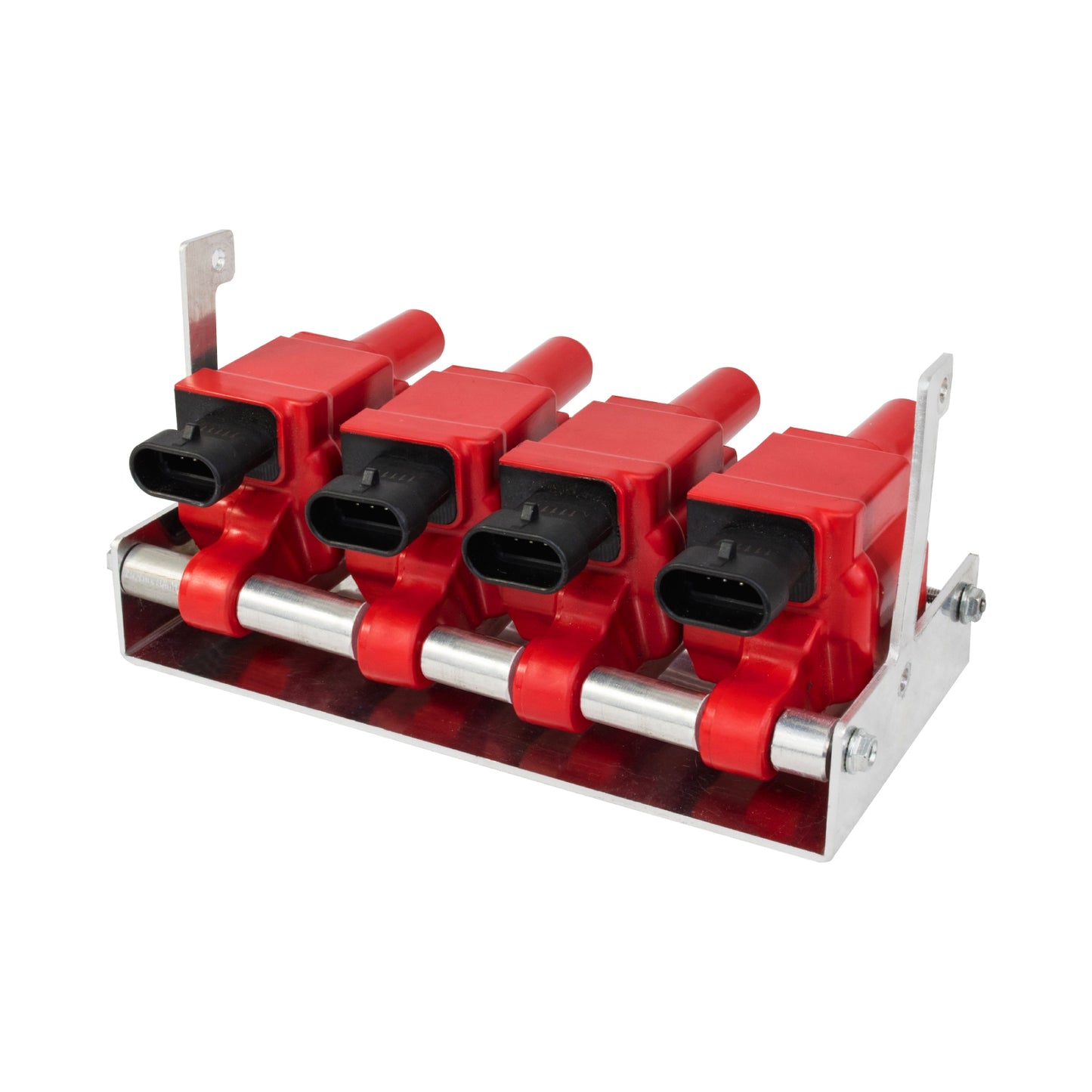

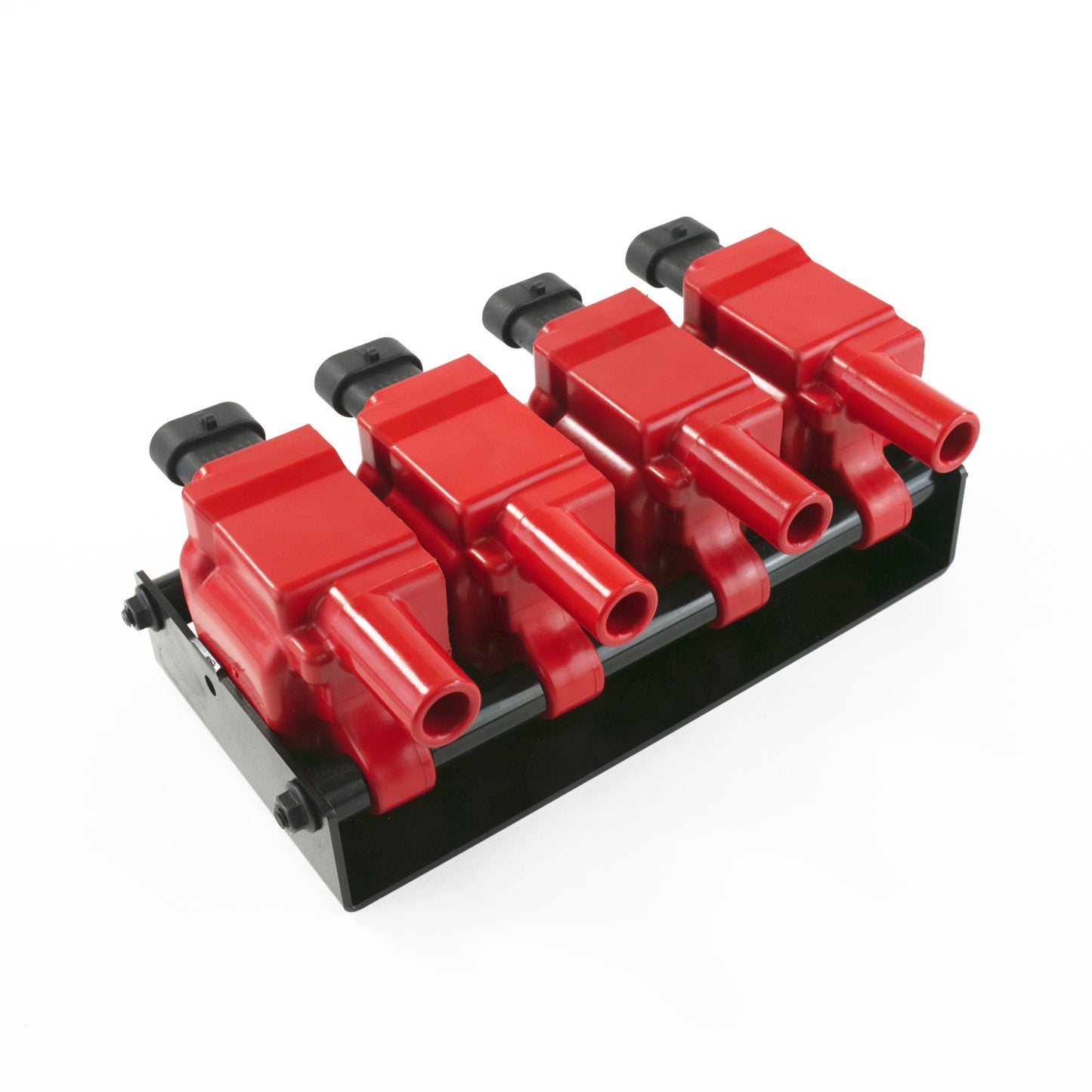

TSP's LS ignition coils feature magnetic steel cores specially designed to deliver up to 15% more spark than OEM. They use a premium epoxy material for added resistance to shock and vibration at high RPM. Relocate them with a pair of custom brackets from TSP. They are constructed of lightweight aluminum, come with all the necessary spacers, and because of their simple design they can be mounted just about anywhere.

Specifications

Bracket Material Billet Aluminum
Coil Style Coil Pack
Internal Construction Epoxy
Primary Resistance 0.500 ohms (Ω)
Secondary Resistance 2,000 ohms (Ω)
Maximum Voltage 40,000 volts (V)
Spark Duration 300 microseconds (µS)
Peak Current 220 milliamperes (mA)
Turns Ratio 75:1
Inductance 2.7 millihenrys (mH)
Coil Wire Attachment Female

Fitment

CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)

  • 4.8 L / 293 in3
  • 5.3 L / 325 in3
  • 6.0 L / 364 in3

NOTES

  • See "Technical" tab for detailed fitment information

Resources

Part Numbers

'99-'07 Coils 81016-8
'03-'18 Coils 81015-8
Black Brackets 81020BK
Natural Brackets 81020

Emissions Disclaimer

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

1965 and older U.S. manufactured California Certified vehicles.

1967 and older U.S. manufactured Federally Certified vehicles.

1967 and older Foreign manufactured vehicles.

The following vehicles are considered Racing Use Only Vehicles:

Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

1966 and newer U.S. manufactured California Certified vehicles.

1968 and newer U.S. manufactured Federally Certified vehicles.

1968 and newer Foreign manufactured vehicles.
