Chevy SB/BB V8 Pro Series Pro Billet Distributor

Regular price $253.00 AUD
Regular price Sale price $253.00 AUD
Sale Sold out
Color

Overview

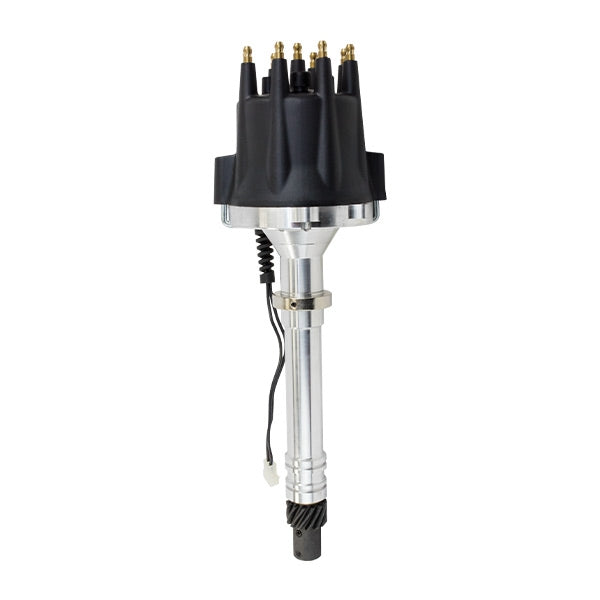

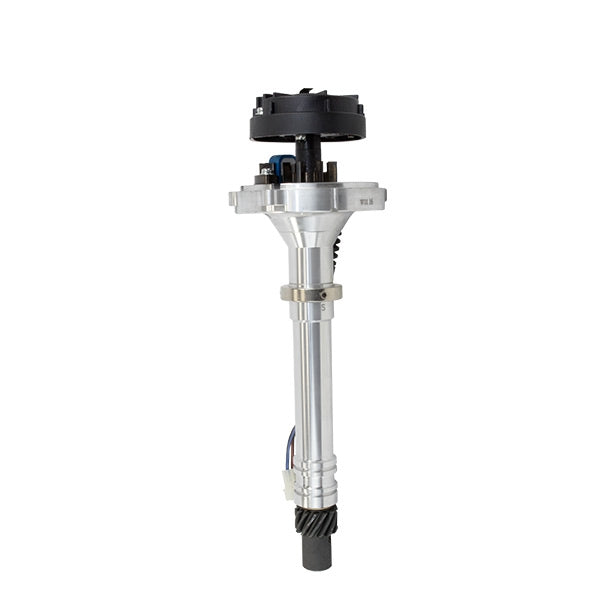

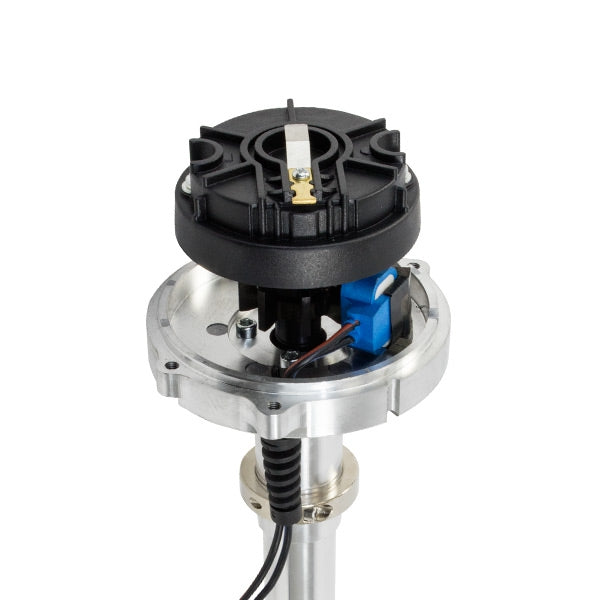

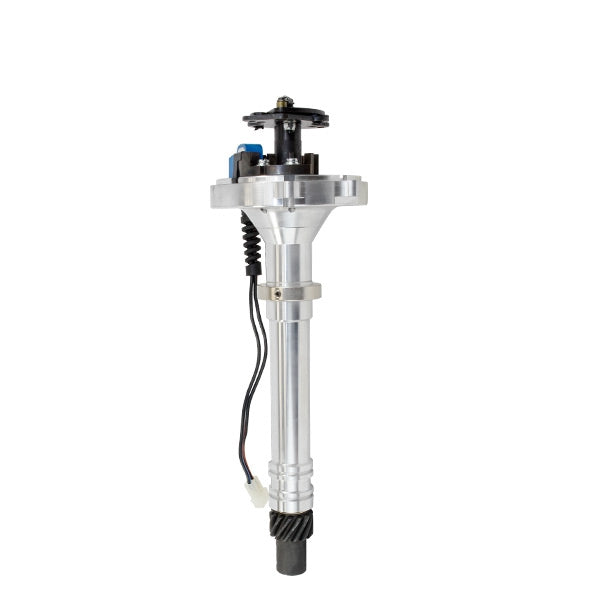

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pickup trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals, a slip collar, and a color-matched wire retainer. Fire up your small block or big block Chevy with a Pro Series Pro Billet distributor from Top Street Performance.

Requires the use of an ignition control system and external ignition coil.

Fully Adjustable Mechanical Advance

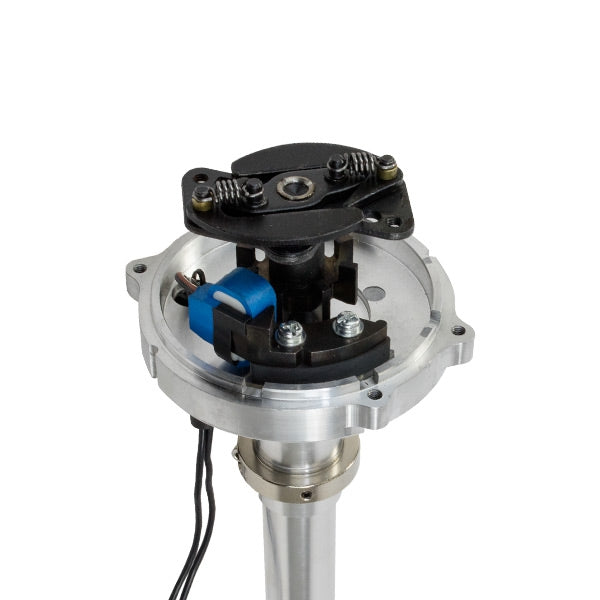

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

Specifications

TRIGGER STYLE Magnetic
ADVANCE TYPE Mechanical

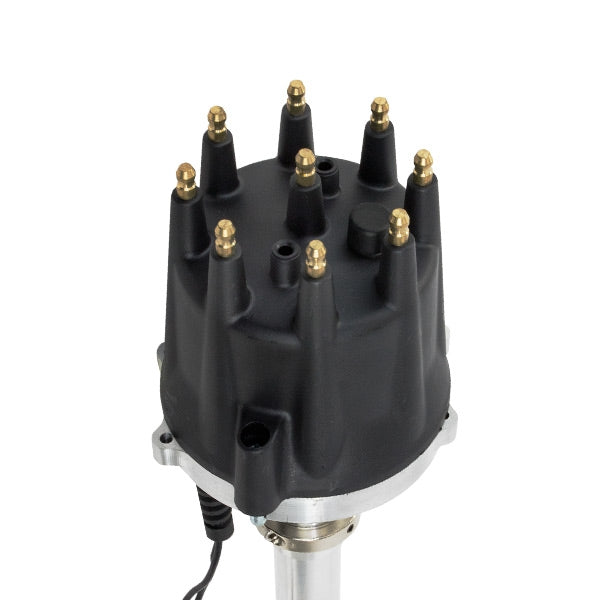

CAP STYLE Male
MECHANICAL TACH DRIVE No
SLIP COLLAR Yes
COIL INCLUDED No
COIL TYPE External
COIL OUTPUT 35Kv+ recommended
GEAR MATERIAL Steel
HOUSING MATERIAL Machined Aluminum
IGNITION BOX REQUIRED Yes
MARINE USE No
CYLINDERS 8
INCLUDED 3 Bushings and 4 Springs for Mechanical Advance,
Color-Matched Spark Plug Wire Retainer with Screws

Fitment

CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)

  • 6.5 L / 396 in3
  • 6.6 L / 402 in3
  • 7.4 L / 454 in3

CHEVROLET SMALL BLOCK V8 GEN. I

  • 4.3 L / 262 in3
  • 4.3 L / 265 in3
  • 4.4 L / 267 in3
  • 4.6 L / 283 in3
  • 4.9 L / 302 in3
  • 5.0 L / 305 in3
  • 5.0 L / 307 in3
  • 5.4 L / 327 in3
  • 5.7 L / 350 in3
  • 6.6 L / 400 in3

NOTES

  • Will not fit tall deck blocks
  • Will not fit if using a governor
  • Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material

ALERT

This product is legal for off road use and non pollution controlled vehicles (1965 & older); however, it has not been tested or approved by the California Air Resources Board (CARB) for highway vehicles in the state of California. By purchasing this product, buyer agrees it will not be used on pollution controlled vehicles in California, or in a state with similar emissions regulations.

Resources

Part Numbers

Black JM7601BK
Blue JM7601BL
Red JM7601R
